Peripheral Devices Thinklab series

CellV Voltage scanning Box
TPT-SV0516A
• Allows the user simultaneously to scan and record 16 CellV voltage.
• Allows 4 channels SV0516A to be parallel connection,to scan and record 64 CellV voltage at the same time.
• Users can set protection contition and transfering condition by the value.
• Users can set protection contition and transfering condition by the value.
• Voltage range:0~5V.

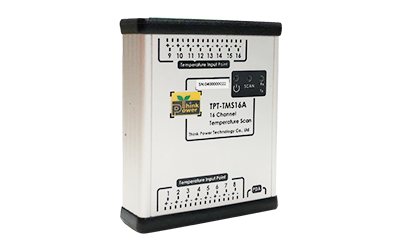

CellT Temperature scanning Box
TPT-TMS16A
• K type, allows the user simultaneously to scan and record 16 CellT temperature.
• The value can be set as protection contition and transferring step condition .
• Temperature range:-30℃~200℃.

CellT Temperature scanning Box
TPT-TMS16B
• Thermistor Type, allows the user simultaneously to scan and record 16 CellT temperature.
• The value can be set as protection contition and transferring step condition.
• Temperature range:-30℃~140℃.

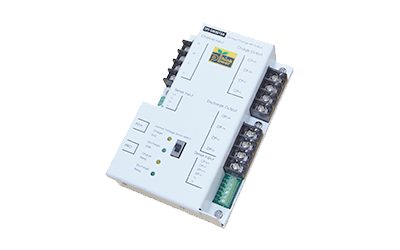

Charge / Discharge separation module
TPT-SW3015A
• 2W Input Change 4W Output,Charge and discharge separation module.
• Its used to do Power Bank test.
• Its used to do Power Bank test.

Gas Gauge Box
TPT-G500A
• allows the user to have three types of communication I²C, SMBus, HDQ simultaneously.
• The value can be recorded and set as transferring step condition.
• For single channel model.

Gas Gauge Box
TPT-CG830B
• allows the user to have three types of communication I²C, SMBus, HDQ simultaneously.
• The value can be recorded and set as transferring step condition.
• For multi-channels model.

TPT-IS6012A
