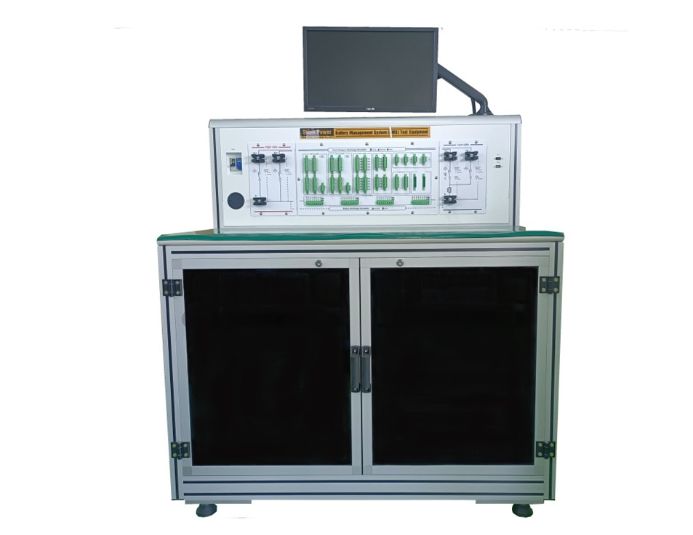

Device Name：Battery management system (BMS) PCBA tester
Device model：TPT-BMSxDevice specification：24、32 Cell
Hardware function：
Cell simulation：5V2A x 24Chs or x 32 Chs
Temperature simulation：10 Ohm ~ 2M Ohm x 8Chs (Max 16Chs)
Current simulation：5V10A
Optional current：4.5V100A、4.5V200A、4.5V300A(Select one)
Charge simulation： 100V+2A-2A or 150V+2A-2A
Protection time measuring：1us ~ 5000us、1ms ~ 50000ms
Signal measuring：61/2 Meter x 40Chs
Expansion contact：4A@250VAC/30VDC x 20Chs
Auxiliary power：3.3V、5V、12V、24V、48V
Optional communication hardware：CAN、I2C、 SMBus、RS485、UART
Optional module：High side、Low side、2W、3W
Function introduction
HMI configuration for TPT-BMS 24/32
Electrical Specifications for TPT-BMS 24/32

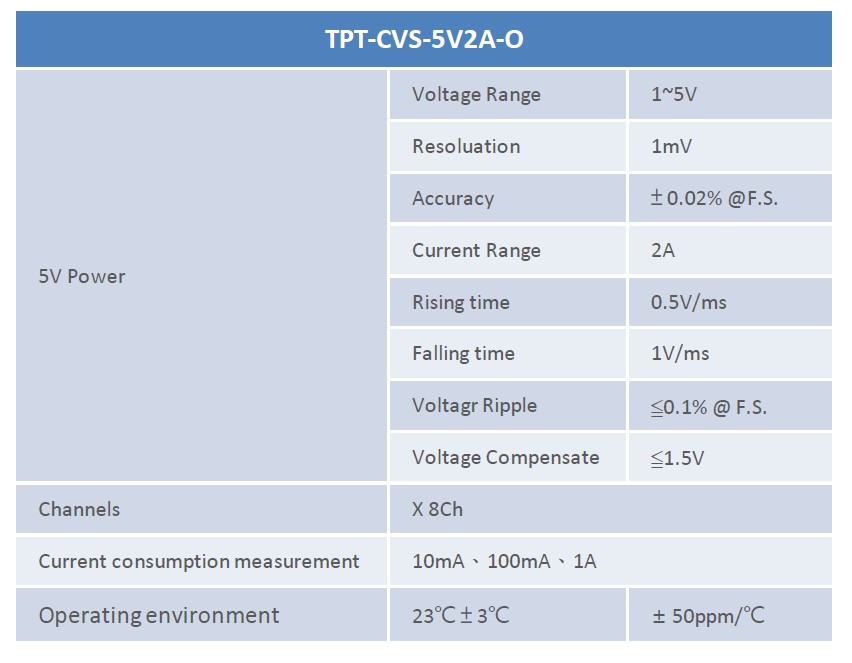

Cell simulation

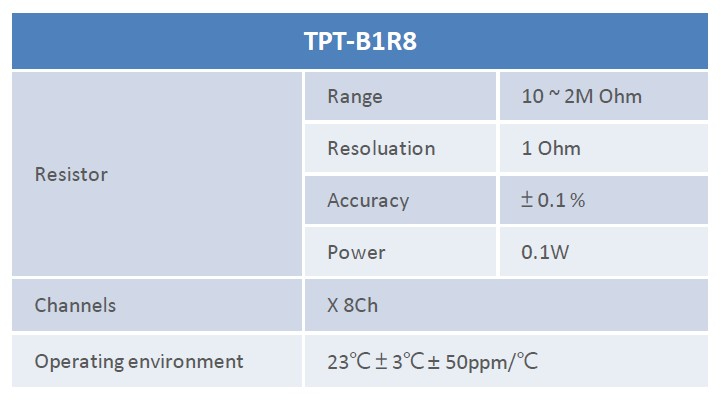

Temperature simulation

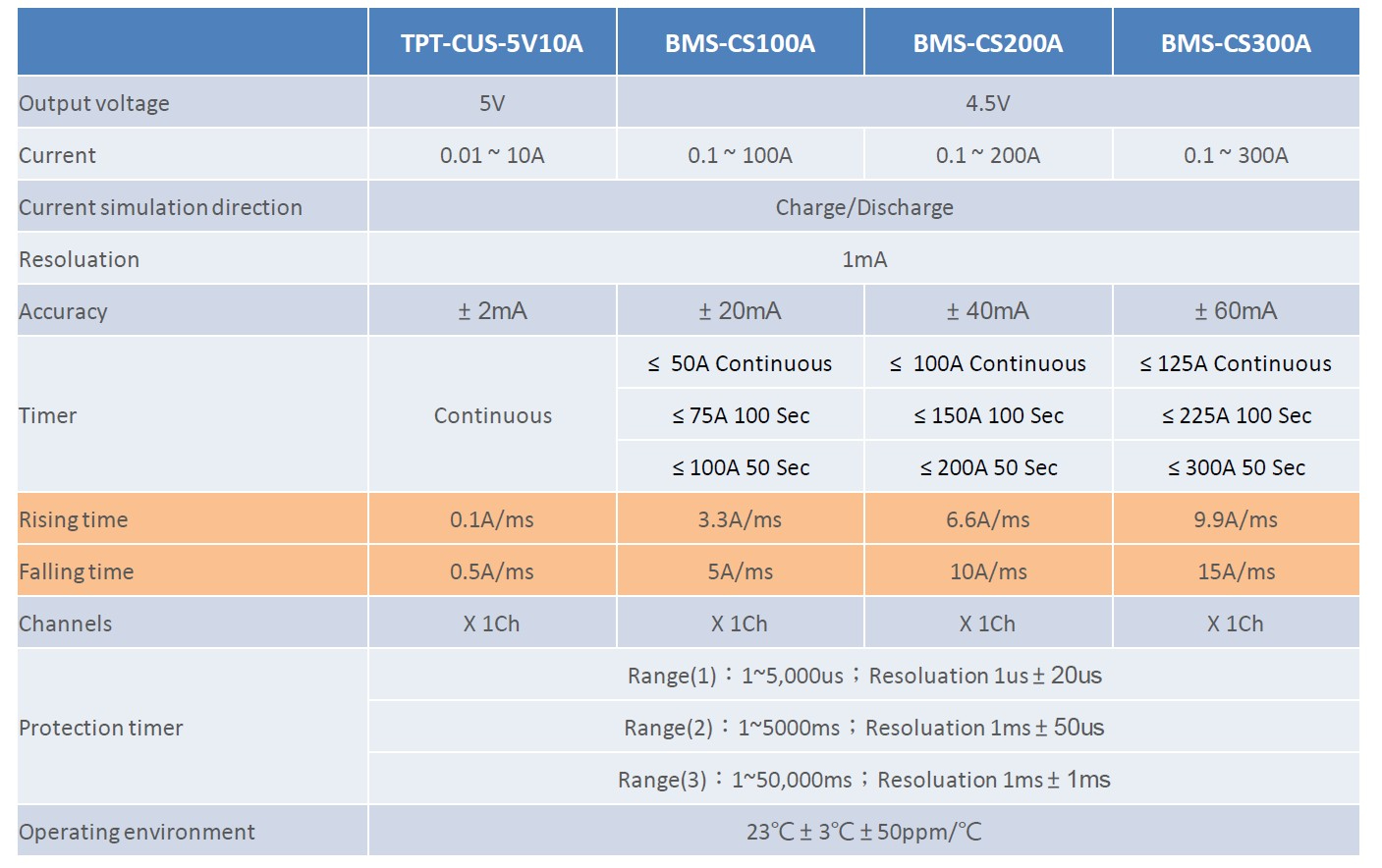

Current simulation

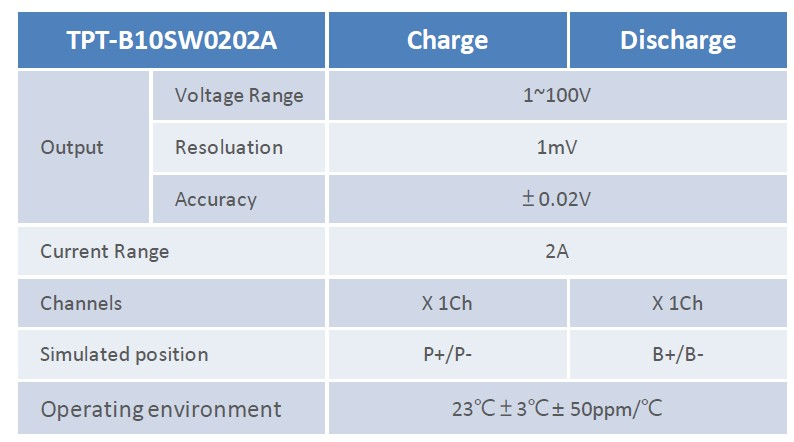

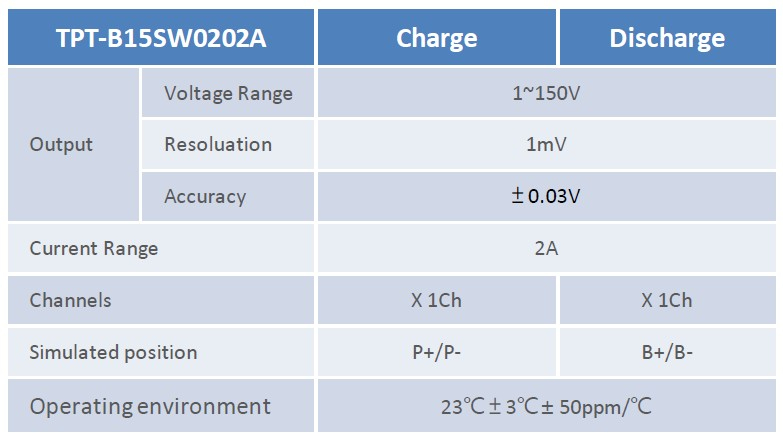

Pack Charge/Discharge simulation

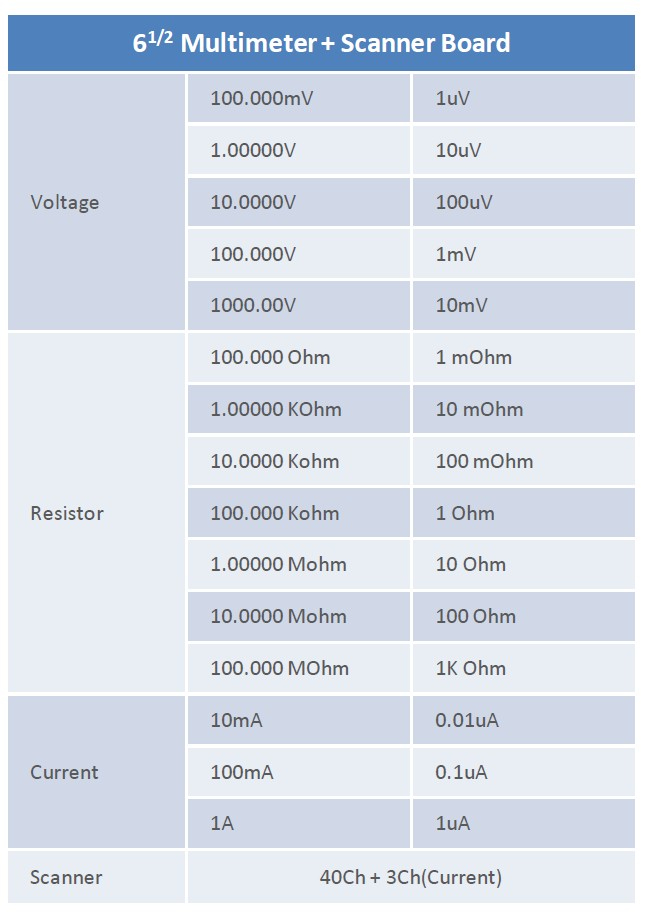

61/2 multi-channel measuring
Communication Module
CAN Module
PCAN-USB/IPEH-002022
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
NXP SJA1000 CAN controller,
16 MHz clock frequency
NXP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V
I2C/SMBus Module
TPT-G510A : I2C = 5V、SMBus = 3.3V
TPT-G510B : I2C/SMBus = 3.3VByte、Word、Block Read/Write
Optical Isolation : 5 kV rms for 1 minute
RS485 Module
Half duplexBaudrate : 9600 bps to 115.2 kbps
Optical Isolation : 2.5 kV rms for 1 minute

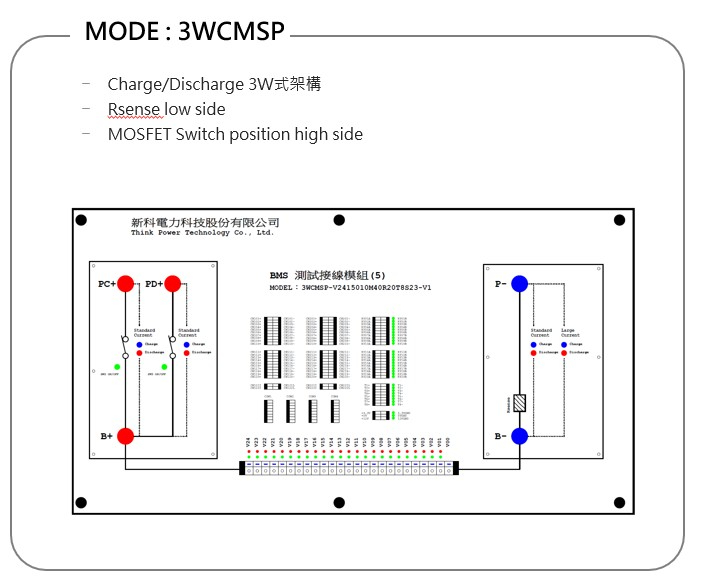

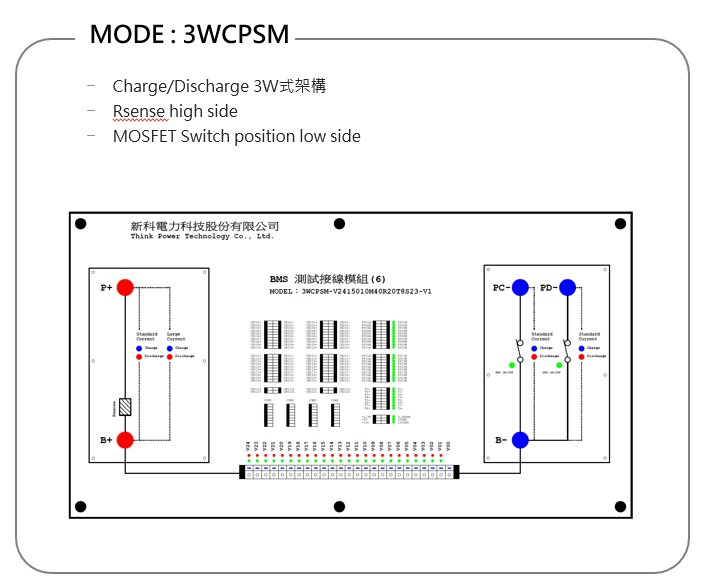

BMS 24/32 generation high/low side fast switching

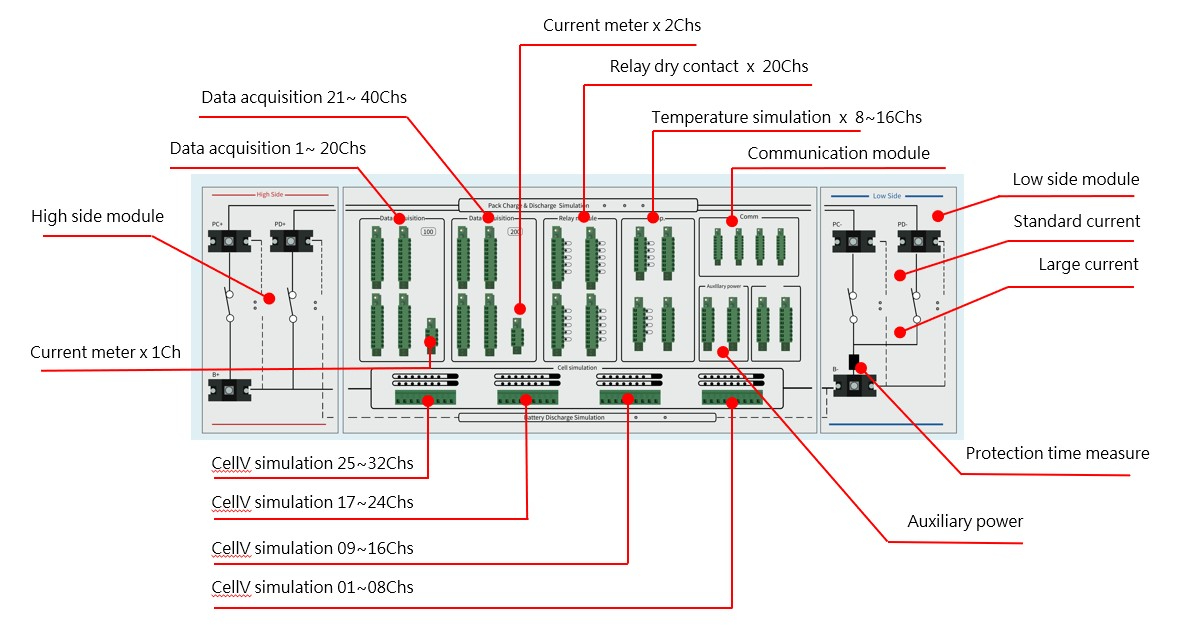

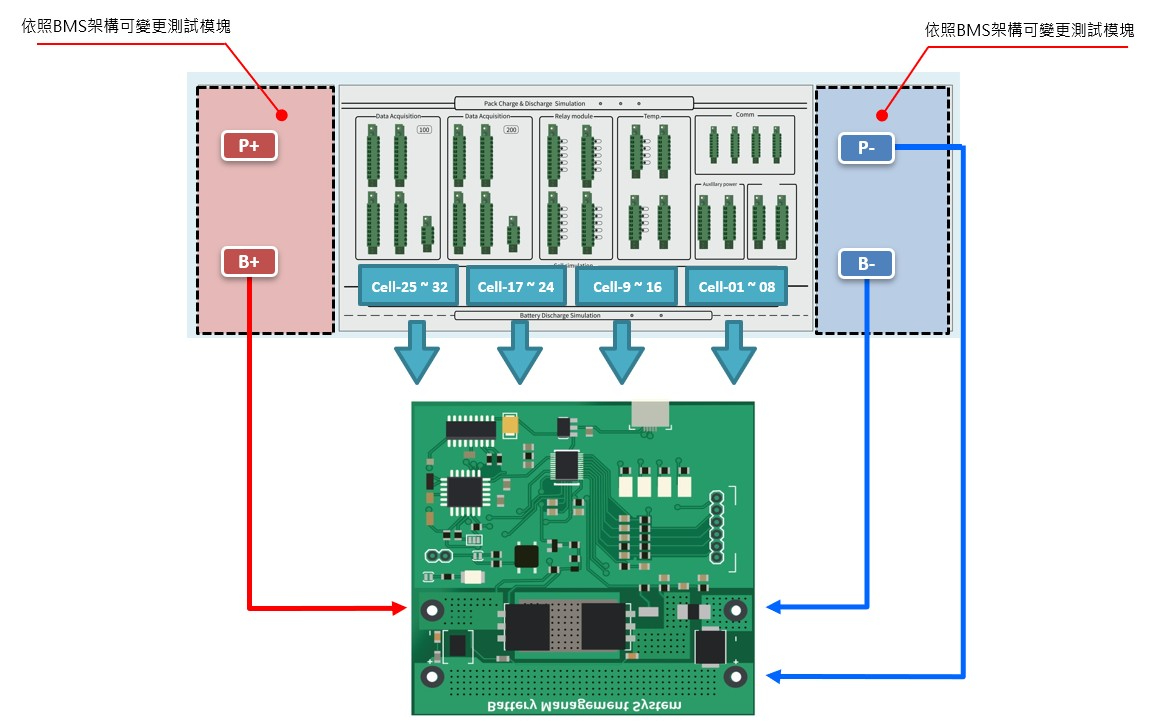

Modular Wiring Solution for Flexible BMS Testing – Shinco Exclusive PatentBy utilizing modular wiring components in conjunction with a dedicated BMS architecture, users can easily follow the panel diagram to quickly establish test wiring setups. This solution is ideal for small-batch, high-mix testing requirements.The panel adopts a standardized fixed layout and is included as a default component with each shipment. Side modules (P+/B+, P-/B-) are optional and can be configured based on specific customer requirements.Test connections are output directly from the panel’s terminal blocks, allowing fast plug-and-play integration with the DUT (Device Under Test) or custom test fixtures.
BMS Test Items
The test functions listed below serve as general descriptions. Actual tests are executed through standard command scripts. Users may freely edit or define test content based on specific development needs using these standard commands.For any questions regarding test script editing, please feel free to contact us via phone or email, or reach out to our sales representatives for customized command development and tailored test solutions.
Items No.36 to No.40 are examples of customized test functions.
Electrical Specifications for TPT-BMS24/32
Fixture solution available：
THINK POWER provides customers with BMS customized fixture design service.
To provides customer with the most complete solution.
PCBA samples：
- Including blank boards and printed PCBA
- CAD & Gerber file：PCBA fixture test points checking.
- Check List test script：PCBA test wiring planning.
- PCBA test points：PCBA test script testpoints.
- Communication Protocol：PCBA test communication protocol.
- Fixture operation Function：PCBA fixture operation function or customized requirment
One year warranty
新科電力科技股份有限公司
Think Power Technology Co., Ltd.
新北市五股區五權三路25號2樓
TEL：+886-2-22902095 FAX：+886-2-22900586
Email：sales@think-power.com.twwww.think-power.com.tw
This Document specification is for reference only and is subject to change without prior notice.
